Changing Relay User Box Settings

If you log in to the administrator mode, you can change settings for a registered Relay User Box or delete it without entering the password for the Relay User Box.

Tips

To use Relay User Box, an Fax Kit is required.

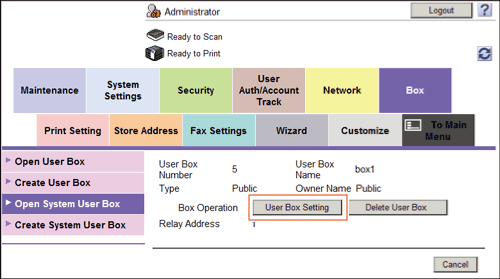

In the administrator mode, select [Box] - [Open System User Box] - [Relay User Box], to select a user box.
Click [User Box Setting].
- Clicking [Delete User Box] deletes the User Box you selected.

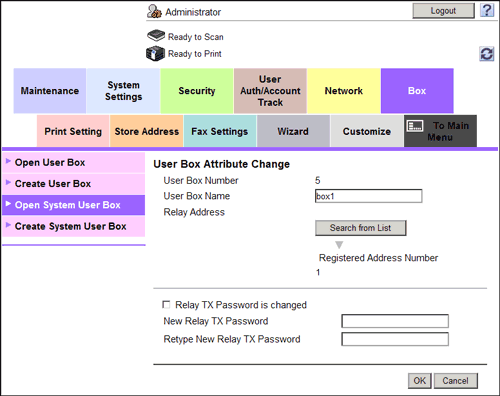

Use [User Box Attribute Change] to change User Box settings.

Settings	Description
[User Box Name]	Change the User Box name (using up to 20 characters).
[Relay Address]	To change a destination, click [Search from List], and select a group in which fax destinations are registered. When registering a group destination as a relay destination, be sure to set the fax address in the group destination in advance.
[Relay TX Password is changed]	To change the relay TX password, select this check box, then enter a new password (using up to eight characters). The entered password is required when sending a relay request to this machine. Inform the sender who want to use this machine as a relay machine of the password you entered here.
