Resolution

HomeFaxResolution

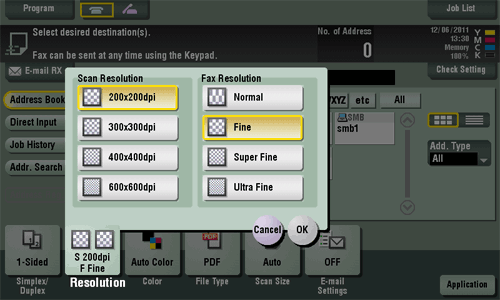

Select the resolution of the original for scanning.

Settings	Description
[Scan Resolution]	Select the resolution of the original for scan transmission. To use E-mail TX, SMB TX, FTP TX, WebDAV TX, or Save in User Box, the following resolution is selected to scan the original. [200 200 dpi]: Select this option to scan a standard original. [300 300 dpi]: Select this option to scan a standard original with the higher resolution. [400 400 dpi]: Select this option to scan an original containing small characters and drawings. [600 600 dpi]: Select this option to convert an original to a file of the maximum size. This option is available when scanning an original such as a full-color photo, which requires a fine level of image quality.
[Fax Resolution]	Select the resolution of the original for sending a fax. To use Fax TX, Internet Fax, or IP Address Fax, the following resolution is selected to scan the original. [Normal]: Select this option to scan originals that do not require a fine level of image quality, or when you want to send a large number of originals quickly. [Fine]: Select this option to scan a standard original. [Super Fine]: Select this option to scan originals containing small characters or drawings. [Ultra Fine]: Select this option to scan originals that require a fine level of image quality.

Settings

Description

[Scan Resolution]

Select the resolution of the original for scan transmission.

To use E-mail TX, SMB TX, FTP TX, WebDAV TX, or Save in User Box, the following resolution is selected to scan the original.

[300 300 dpi]: Select this option to scan a standard original with the higher resolution.

[400 400 dpi]: Select this option to scan an original containing small characters and drawings.

[600 600 dpi]: Select this option to convert an original to a file of the maximum size. This option is available when scanning an original such as a full-color photo, which requires a fine level of image quality.

[Fax Resolution]

Select the resolution of the original for sending a fax.

To use Fax TX, Internet Fax, or IP Address Fax, the following resolution is selected to scan the original.

[Normal]: Select this option to scan originals that do not require a fine level of image quality, or when you want to send a large number of originals quickly.

[Super Fine]: Select this option to scan originals containing small characters or drawings.

[Ultra Fine]: Select this option to scan originals that require a fine level of image quality.

The finer the scan resolution is, the larger the data volume becomes, resulting in longer transmission time. When E-mailing or using E-mail for sending data as in Internet fax operations, check to see if there is any limit to the data volume you can send.
