Home>Fax>Checking the Finish before Sending

Fax

Checking the Finish before Sending

  1. Load the original.
  2. Tap [Scan/Fax].
  3. Enter a fax number.
  4. Configure the option settings for Fax TX as necessary.
  5. Press Preview.

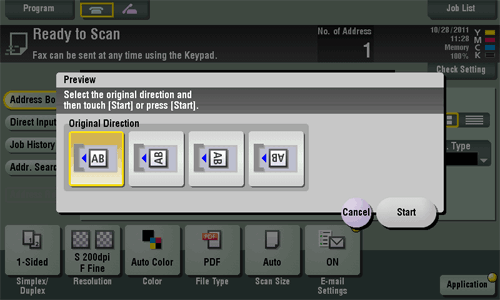

  6. Select the original direction.
    • When the original is loaded into the ADF:
    • When the original is loaded into the Original Glass:
  7. Tap [Start] or press the Start key.

    The original is scanned, and the Preview screen appears.

  8. Tap .

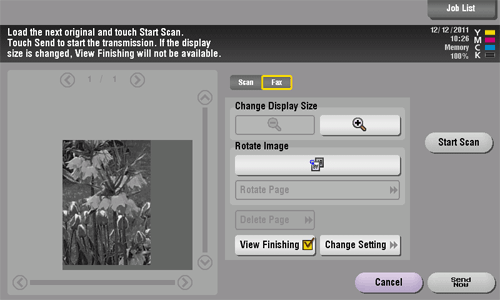

    The screen used to change the preview display appears.
    • To continue to scan originals, load the original, then tap [Start Scan].
    • To start TX, tap [Send Now] or press the Start key.

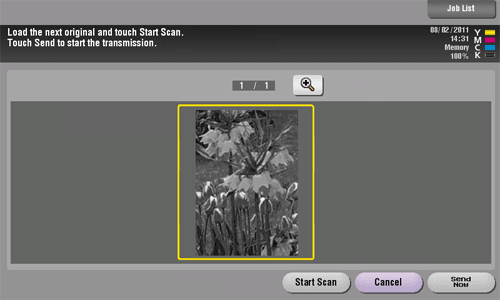

  9. Check the preview display, and rotate the image or change settings as needed.
    • To continue to scan originals, load the original, and tap [Start Scan].
    • When destinations other than those for faxes are also specified for the destinations, the preview appears with the window for changing the settings for the scan function selected. To check the fax preview, press [Fax] to switch the display.
  10. After all originals are scanned, tap [Send Now] or press the Start key.

    Sending starts.

Related setting (for the administrator)
  • Normally, preview images are displayed after all the original data is scanned. However, you can also use the real-time preview, which displays preview images on a page basis while scanning the originals (Default:[OFF]). For details, refer to Here.
  • After pressing the Preview key, you can select whether to display the screen to select the original direction (Default: [ON]). For details, refer to Here.
  • You can select a display condition for the preview image (Default: [Preview Settings Screen]). For details, refer to Here.
