Paper Jam in Paper Tray

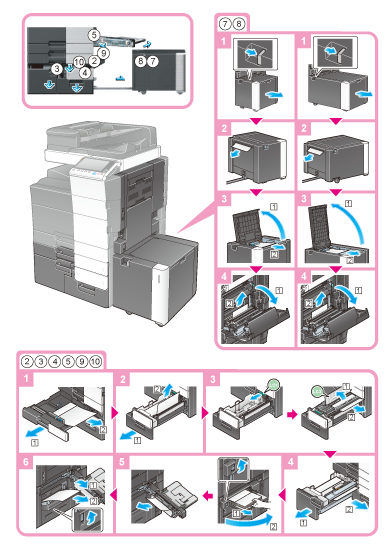

  • The figure shows the Large Capacity Unit LU-303 installed.

  • When closing the Top Right Door, press around the center of the Top Right Door and ensure that it is securely closed.

  • Be careful not to touch the surface of the film or Paper Feed Rollers with your hand.

  • The inside of this product has areas subject to high temperature, which may cause burns. When checking the inside of the unit for malfunctions such as a paper misfeed, do not touch the locations (around the fusing unit, etc.) which are indicated by a "Caution HOT" caution label. A burn could result.
