Adjusting the Touch Panel

Adjusting a position to tap the Touch Panel

If a Touch Panel key does not respond normally when tapped, it may not be detected properly.

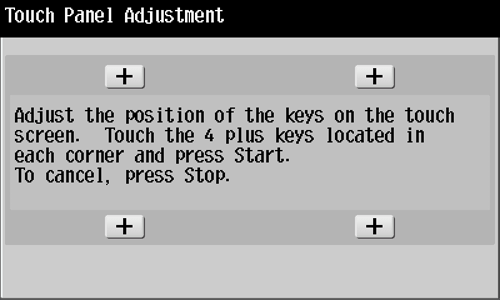

  1. Tap [Accessibility] - [Touch Panel Adjustment].

  2. Tap four [+] keys while checking keying sounds.

    • Tap these [+] keys to adjust a position gap. Tap these keys in any sequence.

    • To start adjusting again, press Stop and tap [+] again.

    • To stop the adjustment, press the Stop key.

    Tapping four [+] keys lights the Start indicator lamp in green.

  3. Press the Start key.

    Re-operate the screen that did not respond properly before adjustment, and check that the keying position is adjusted correctly.

  • After this procedure, if a keying error recurs, contact your service representative.

Adjusting the brightness of the Touch Panel

Adjust the brightness level of the Touch Panel.

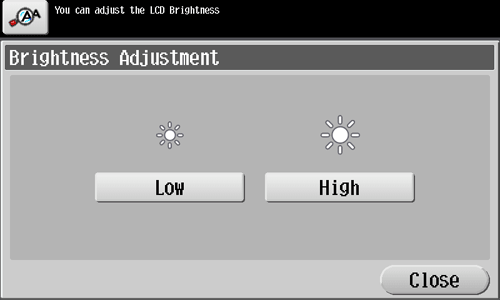

  1. Tap [Accessibility] - [Brightness Adjustment], and select [Low] or [High] to adjust the brightness.

Changing the double-tap interval settings

Change the double-tap interval at five levels. Double-tap the box at the right of the screen to check the current setting.

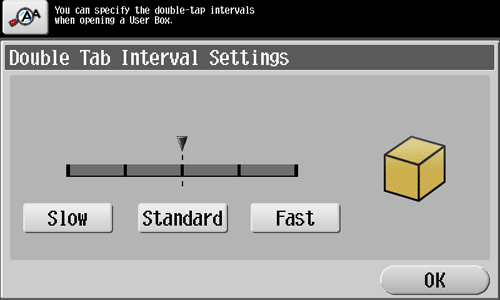

  1. Tap [Accessibility] - [Double Tab Interval Settings], and select [Slow], [Standard], or [Fast] (default: [Standard]) to change the interval.
