Screen Layout of LK-114_SetupTool

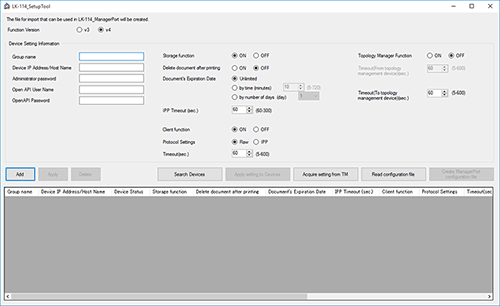

The LK-114_SetupTool page is comprised of the following components.

Setting

Description

[Function Version]

Select the function version of serverless pull printing you want to use.

[Device Setting Information]

Set the device to be incorporated in the serverless pull printing environment.

  • [Group name]: Enter the name of the serverless pull printing group to add the device to.

  • [Device IP Address/Host Name]: Enter the IP address or host name of the device.

  • [Administrator password]: Enter the administrator password of the device.

  • [OpenAPI User Name]: Enter the user name for OpenAPI authentication of the device.

  • [OpenAPI Password]: Enter the password for OpenAPI authentication of the device.

  • [Storage function]: Select whether to enable the storage function.

  • [Delete document after printing]: Specify whether to automatically delete the jobs spooled in the storage machine when they have been printed.

  • [Document's Expiration Data]: Specify the time until the jobs spooled in the storage machine are automatically deleted.

  • [IPP Timeout (sec.)]: Specify the timeout to print data using IPP.

  • [Client function]: Select whether to enable the client function.

  • [Protocol Settings]: Select a protocol to be used for serverless pull printing.

  • [Timeout (sec.)]: Specify the timeout to connect the MFP to the storage machine.

  • [Topology Manager Function]: Select whether to enable the topology manager function.

  • [Timeout(From topology management device)(sec.)]: Specify the timeout period for communication from the topology machine when using the device as the topology machine.

  • [Timeout(To topology management device)(sec.)]: Specify the timeout period for communication to the topology machine when using the device as a storage or client machine.

[Add]

Adds the device information displayed in [Device Setting Information] to the end of the list.

[Apply]

Applies the device information displayed in [Device Setting Information] to the device information selected in the list, and updates the list contents.

[Delete]

Deletes the device information selected in the list.

[Search Devices]

Searches for the devices for which the serverless pull printing function on the network is enabled, and displays them in the list.

A search is performed for the devices for which the serverless pull printing function version selected in [Function Version] is enabled.

[Apply setting to Devices]

Applies the list contents to the device, and updates the device settings.

[Acquire setting from TM]

Communicates with the specified topology machine to acquire the serverless pull printing group information in the domain, and displays it in the list.

This function is available when [Function Version] is set to [v4].

[Read configuration file]

Loads the configuration file saved when exiting LK-114_SetupTool.

[Create ManagerPort configuration file]

Creates a configuration file to load to LK-114_ManagerPort.

This function is available when [Function Version] is set to [v4].

Device list

Displays the information of the devices used in the serverless pull printing environment.
