LK-114_SetupTool

About LK-114_SetupTool

LK-114_SetupTool is an application for building a serverless pull printing environment.

You can also create a configuration file to load into LK-114_ManagerPort from the configuration information of the serverless pull printing group managed by LK-114_SetupTool.

  • LK-114_SetupTool is not available in the IPv6 environment. To use the serverless pull printing function in the IPv6 environment, configure settings on the MFP. For details, refer to Here.

System environment requirements

For details on the system requirements, refer to Here.

Preparation required to use this function

To use LK-114_SetupTool, configure NetBIOS settings on the computer.

  1. Open [Control Panel].

    • For information on how to display [Control Panel], refer to Here.

  2. Click [Network and Internet] - [Network and Sharing Center] - [Ethernet].

  3. Click [Properties].

  4. From the connection item list, select [Internet Protocol Version 4 (TCP/IPv4)], then click [Properties].

  5. Click [Preferences].

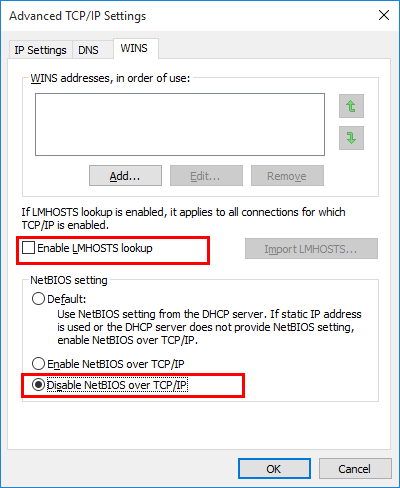

  6. On the [WINS] tab of the [Advanced TCP/IP Settings] page, configure NetBIOS settings, then click [OK].

    • Clear the [Enable LMHOSTS lookup] check box.

    • In [NetBIOS Settings], select [Disable NetBIOS over TCP/IP].

  7. From the Start menu, click [All Programs] - [Accessories] - [Command Prompt].

  8. Execute the "ipconfig /flushdns" command.

    • Insert a space between "ipconfig" and "/flushdns".

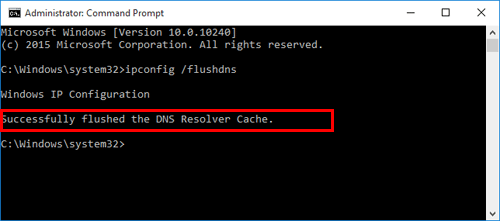

    The message shown below appears.

    NetBIOS settings are then completed.
